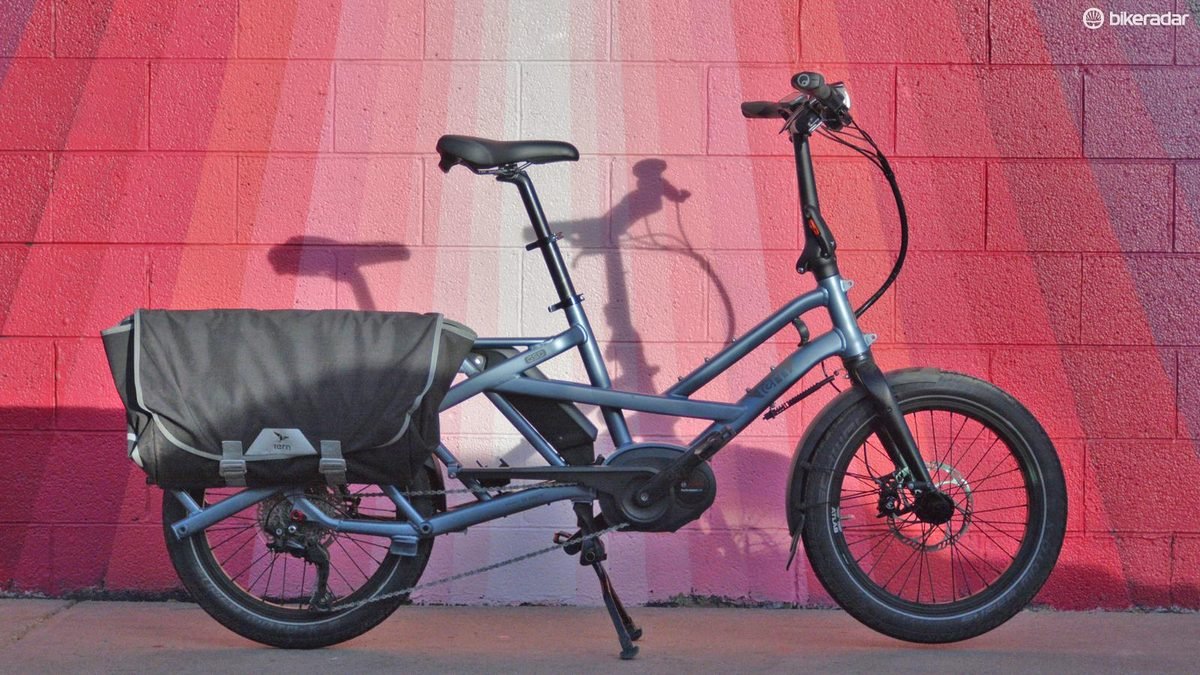

Tern HSD P9 – Compact Cargo E-Bike
Compact mid-tail cargo e-bike – Bosch Performance Line power, 170kg payload, 20in wheels. The compact urban hauler for single-child families and smaller homes.
Key features

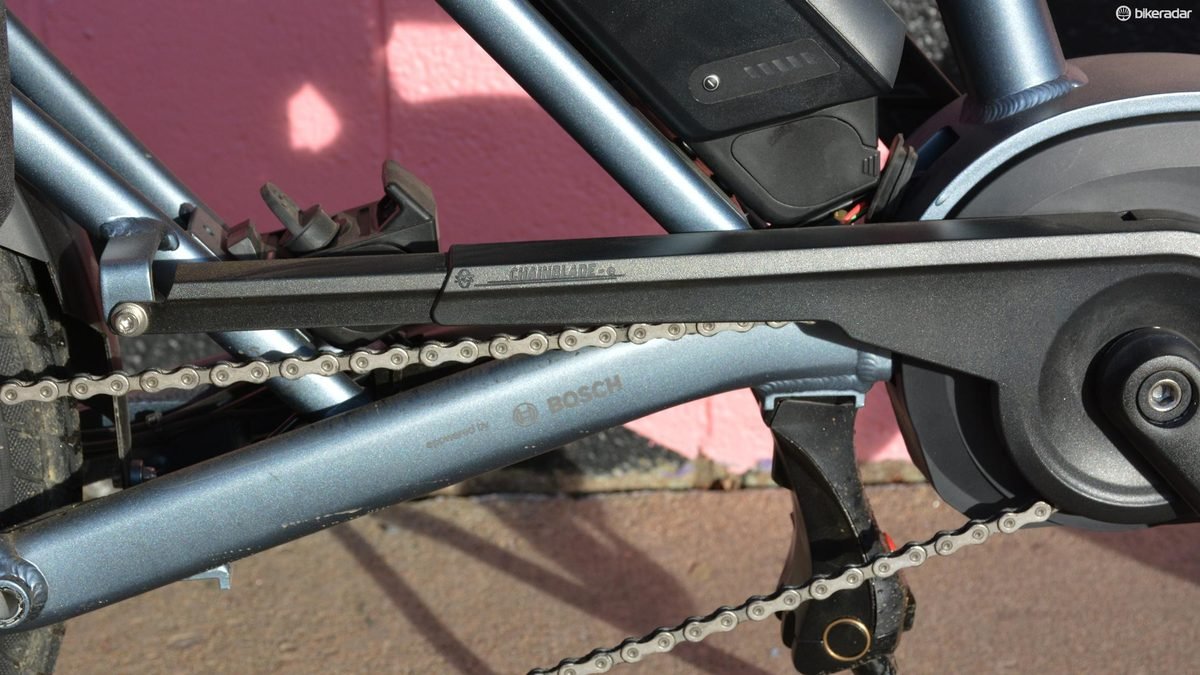

- Bosch Performance Line motor, 65Nm torque
- Bosch PowerTube 400Wh battery (500Wh option on some specs)
- 170kg total payload – child seat, panniers, weekly shop
- 20in wheels – vertical parking, easy storage
- Atlas rear rack, MIK-compatible accessories
- Magura MT5 4-piston hydraulic brakes

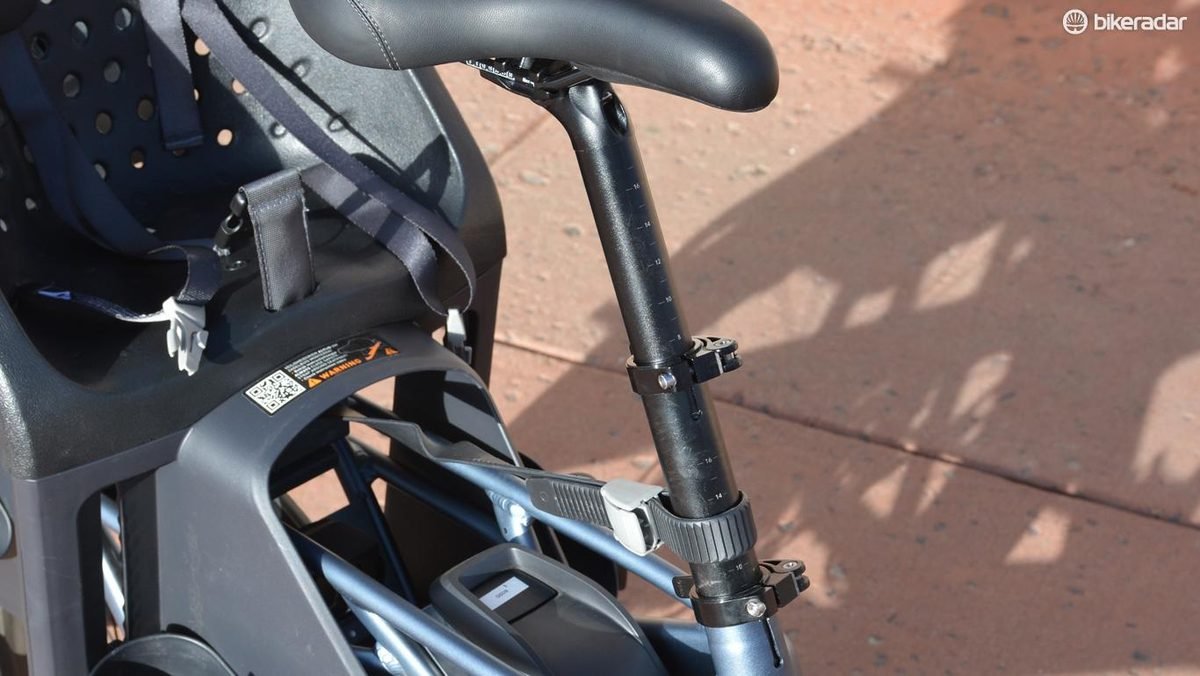

- One-size-fits-all via adjustable stem and seatpost (4’11”-6’5″)
Specifications
| Frame | Aluminium, mid-tail |
| Fork | Aluminium rigid |
| Motor | Bosch Performance Line, 65Nm, 250W |
| Battery | Bosch PowerTube 400Wh |
| Drivetrain | Shimano Alivio 1×9, P9 spec |
| Brakes | Magura MT5 4-piston hydraulic disc |
| Wheels | 20in aluminium |
| Tyres | Schwalbe Big Apple or Super Moto-X |
| Lights | Front and rear integrated |
| Cargo | Atlas rear rack, MIK-compatible |
| Cargo capacity | 170kg total payload |
| Weight | 24.9kg |
Geometry
One-size adjustable cockpit. Fits riders 4’11”-6’5″.
Ride notes
More agile than the GSD thanks to shorter wheelbase and lighter weight, while still hauling serious cargo. The compromise pick when GSD is overkill but a normal commuter isn’t enough.
Available sizes
One size (cockpit adjusts)
Specification subject to change. Please confirm exact build, colour and availability before ordering.
