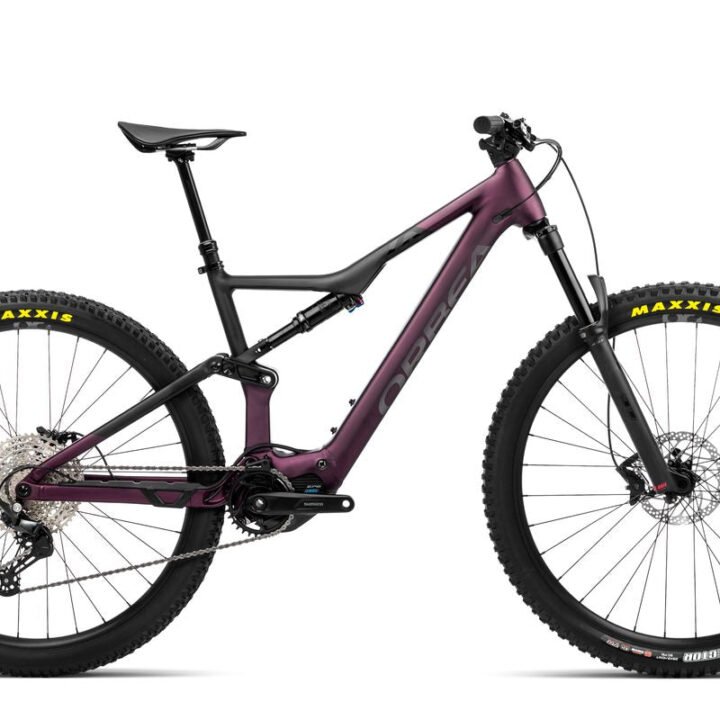

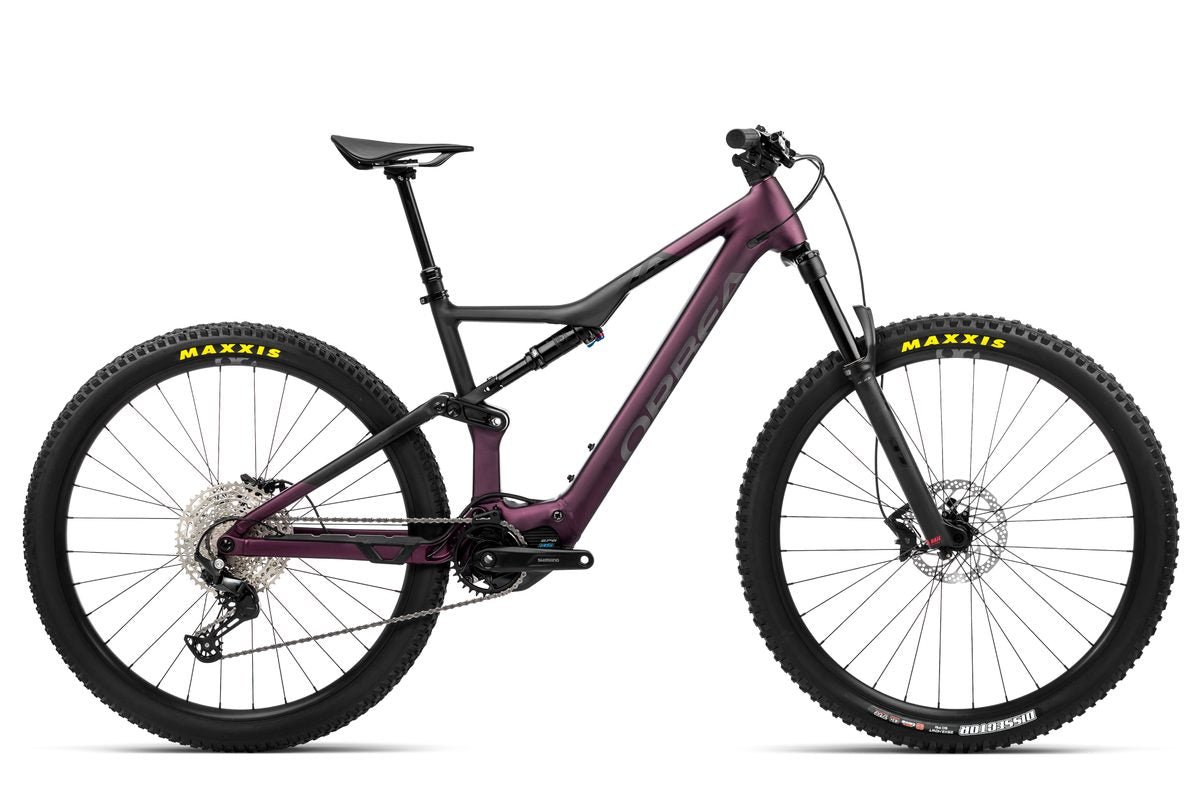

Orbea Rise H30 - Lightweight Trail E-MTB
Lightweight aluminium trail e-MTB with Shimano EP6 RS motor - Orbea’s Rider Synergy tune. MyO custom colour and spec options. The sub-20kg ride that doesn’t feel like an e-bike.
Key features

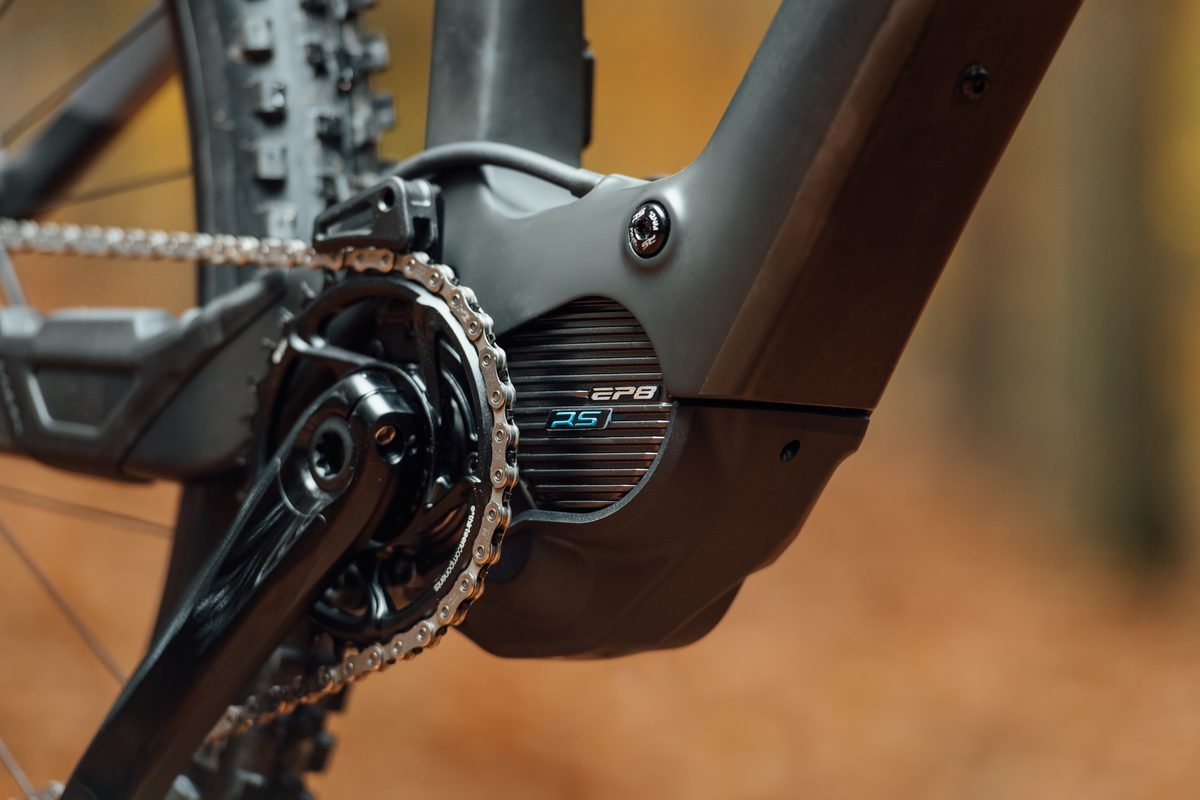

- Shimano EP6 RS motor - 60Nm torque, Orbea Rider Synergy software tune

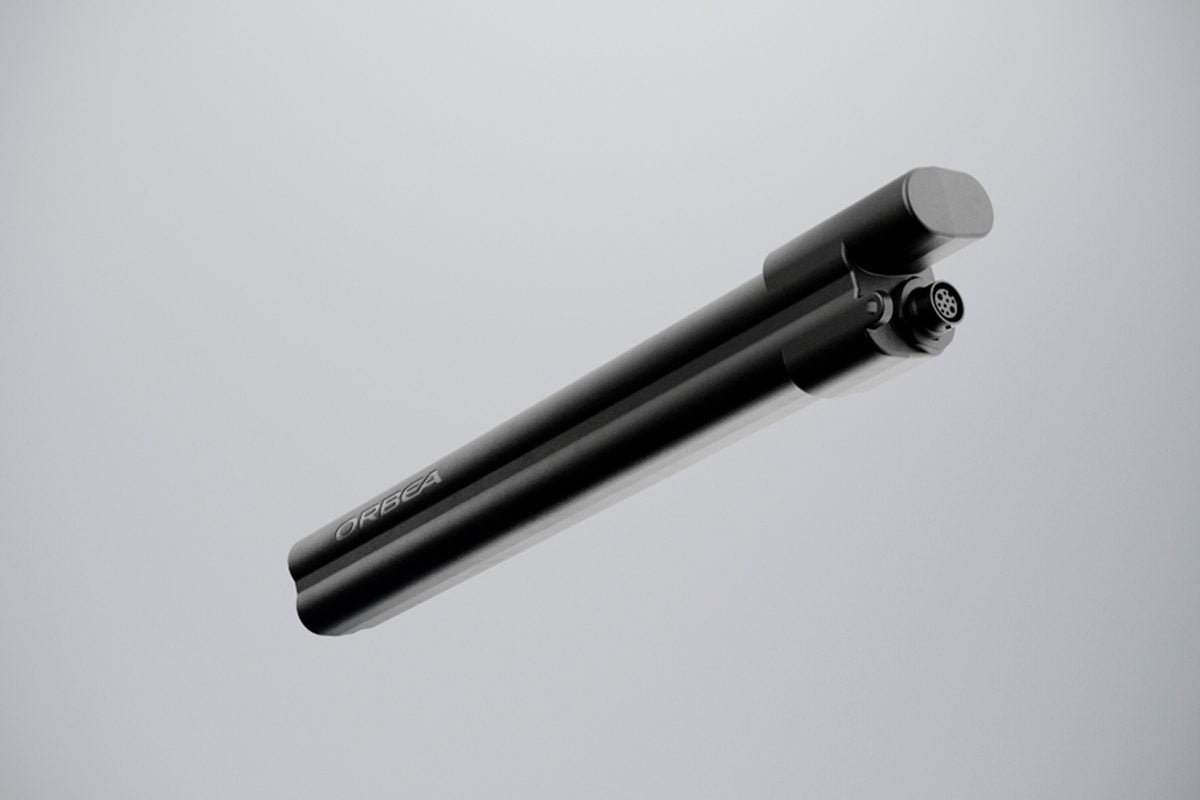

- Orbea Internal 540Wh battery (360Wh option) - Range Extender available (+252Wh)
- 140mm rear / 140-150mm front travel, 29in wheels
- Compatible with Range Extender for up to 792Wh total capacity
- Shimano EN600 wireless remote, Garmin IQ app integration
- Free MyO custom paint/colour and spec options when buying direct
- Compatible with Orbea’s FLP integrated multi-tool
Specifications
| Frame | Orbea Rise Hydro aluminium, 140mm travel |
| Fork | Marzocchi Bomber Z2, GRIP, 140mm travel |
| Rear shock | Fox Float DPS Performance |
| Motor | Shimano EP6 RS, 60Nm, aluminium housing |
| Battery | Orbea Internal 540Wh (360Wh option) |
| Drivetrain | Shimano Deore M6100, 12-speed |
| Brakes | Shimano MT-410 hydraulic disc |
| Wheels | Alloy, tubeless-ready, 29in |
| Tyres | Maxxis Dissector 3C MaxxTerra EXO 29×2.4in (f), Rekon 3C MaxxTerra EXO+ 29×2.4in (r) |
| Saddle | Selle Italia Model X Fec Alloy |

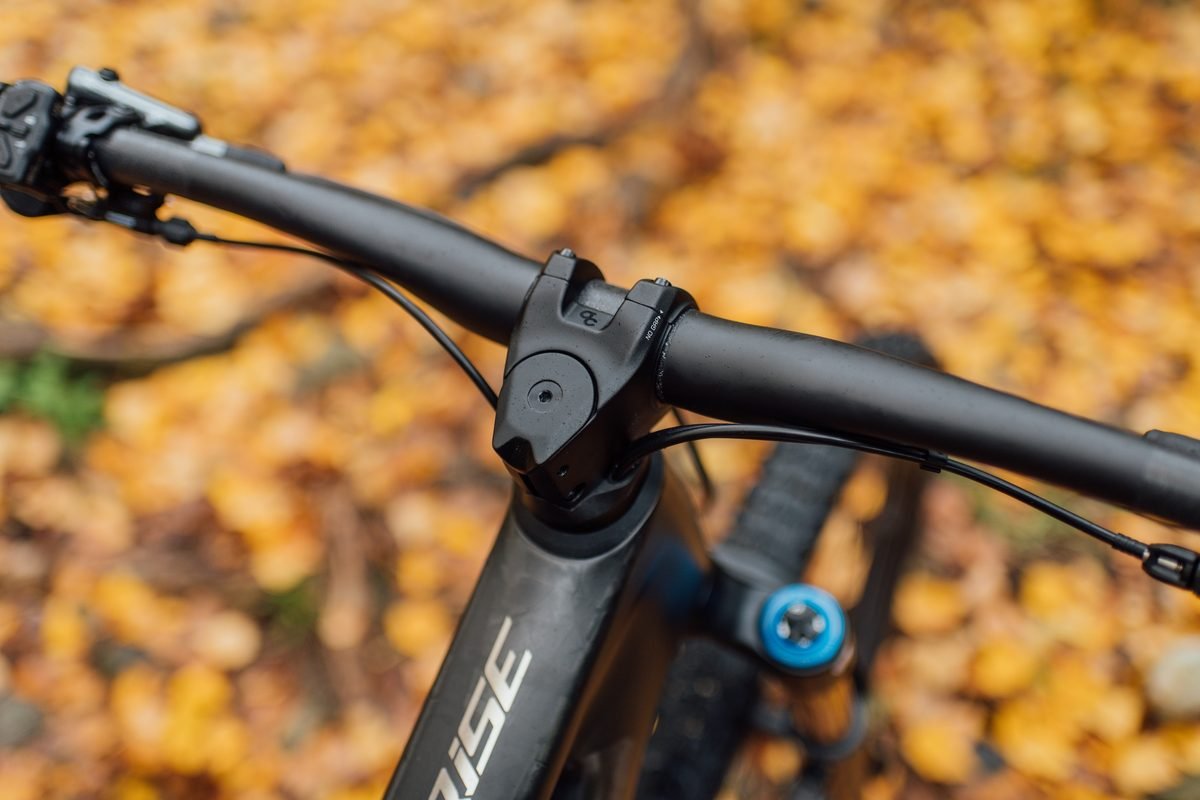

| Cockpit | OC Mountain Control MC31 800mm bar, MC20 stem |

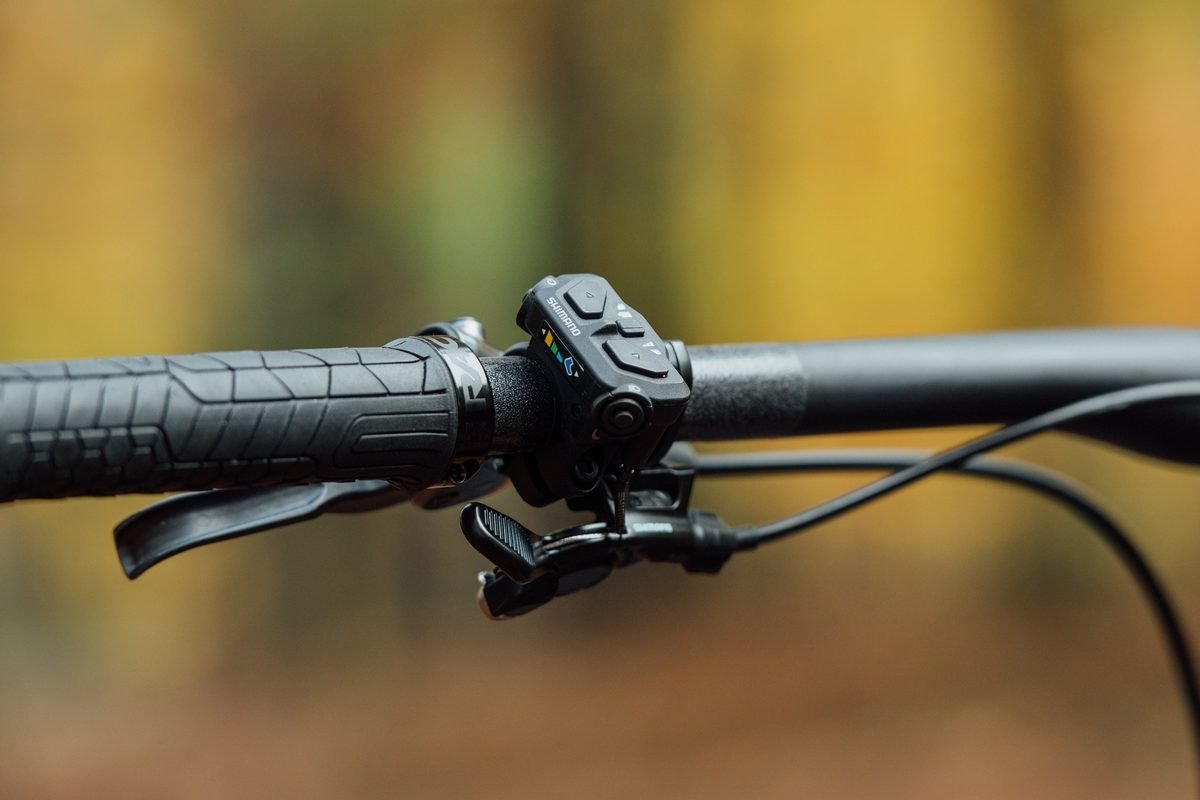

| Remote | Shimano EN600-L wireless |
| Display | Garmin-compatible via Orbea RS app |
| Weight | ~20.1kg |
Geometry
Trail-progressive. 66° head angle, 77° seat angle, 474mm reach (L), 627mm stack, 1,229mm wheelbase, 445mm chainstays.
Ride notes
Natural assist feel from the RS-tuned EP6. Pedals like a regular trail bike once unassisted. Range to 80% in 2h fast-charge. Excellent value entry into Orbea’s lightweight e-MTB platform.
Available sizes
S, M, L, XL (with MyO customisation)
Specification subject to change. Please confirm exact build, colour and availability before ordering.
